• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1969–1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 117995

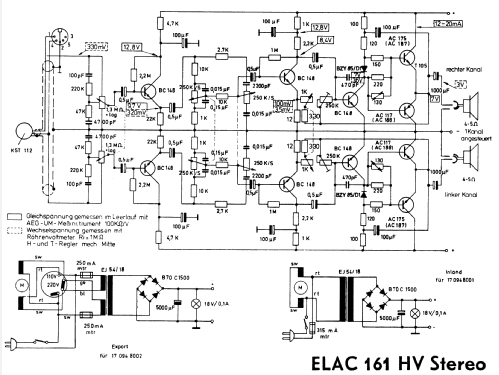

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Rec.Player+Audio.Amp+LS

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• 2 Loudspeakers / Ø 18 cm = 7.1 inch

• Material
• Wooden case

• from Radiomuseum.org

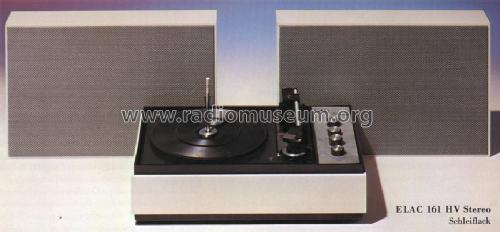

• Model: 161HV Stereo - Elac Electroacustic GmbH; Kiel

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 410 x 250 x 265 mm / 16.1 x 9.8 x 10.4 inch

• Notes
• Transistoren: 6× BC148, 2× AC117, 2× AC175.
  Phono-Chassis = 161, Stereo-NF-Verstärker mit 2 Endstufen je 3 W.

• Net weight (2.2 lb = 1 kg)
• 9.7 kg / 21 lb 5.9 oz (21.366 lb)

• Price in first year of sale
• 400.00 DM

• Source of data
• Handbuch VDRG 1969/1970

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
