• Year
  • 1970/1971
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28010

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 37
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     11 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-120; 220-240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

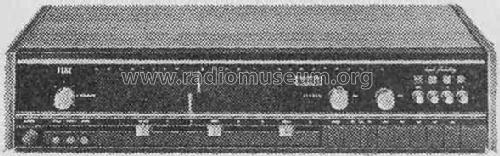

  • Model: 2200T - Elac Electroacustic GmbH; Kiel
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 595 x 311 x 262 mm / 23.4 x 12.2 x 10.3 inch
  • Notes
  • Vollstereo, NF-Verstärker mit zwei Endstufen je 18 W (Sinus).
  • Net weight (2.2 lb = 1 kg)
  • 8 kg / 17 lb 9.9 oz (17.621 lb)
  • Price in first year of sale
  • 798.00 DM
  • External source of data
  • Erb
