• Year
  • 1971/1972
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 28388

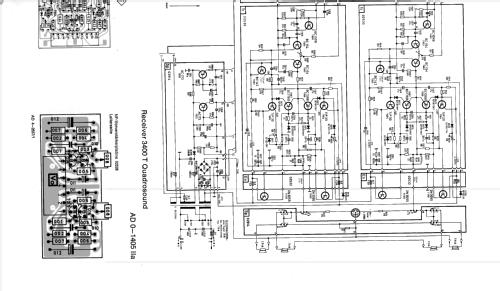

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 49
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 460/10700 kHz
  • Tuned circuits
  • 6 AM circuit(s)     16 FM circuit(s)
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Wooden case
  • from Radiomuseum.org

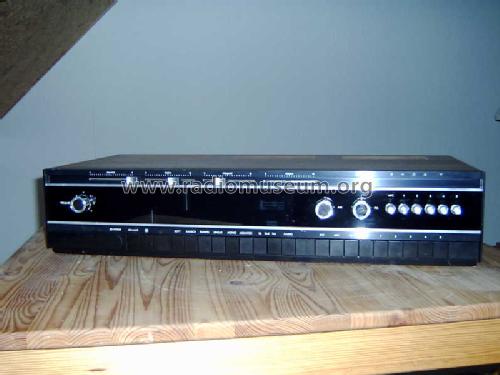

  • Model: 3400T - Elac Electroacustic GmbH; Kiel
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 630 x 134 x 315 mm / 24.8 x 5.3 x 12.4 inch
  • Notes
  • Vollstereo, NF-Verstärker mit zwei Endstufen je 30 W (Sinus).
  • Net weight (2.2 lb = 1 kg)
  • 11.5 kg / 25 lb 5.3 oz (25.33 lb)
  • Price in first year of sale
  • 1,098.00 DM
  • External source of data
  • Erb
