Aktiv Lautsprecher SUB 05 ESP

Aktiv Lautsprecher SUB 05 ESP; Elac Electroacustic (ID = 1836709) Speaker-P Aktiv Lautsprecher SUB 05 ESP; Elac Electroacustic (ID = 1837320) Speaker-P
Aktiv Lautsprecher SUB 05 ESP; Elac Electroacustic (ID = 1837321) Speaker-P Aktiv Lautsprecher SUB 05 ESP; Elac Electroacustic (ID = 1837322) Speaker-P
Aktiv Lautsprecher SUB 05 ESP; Elac Electroacustic (ID = 1837323) Speaker-P
Use red slider bar for more.

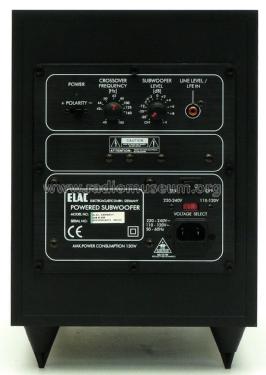

Aktiv Lautsprecher SUB 05 ESP; Elac Electroacustic (ID = 1836709) Speaker-P
Elac Electroacustic: Aktiv Lautsprecher SUB 05 ESP [Speaker-P] ID = 1836709 1222x1544
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aktiv Lautsprecher SUB 05 ESP, Elac Electroacustic GmbH; Kiel

Country:  Germany
Manufacturer / Brand:  Elac Electroacustic GmbH; Kiel
Year: 2003–2007 Category: Loudspeaker, headphone or earphone
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details Loudspeaker + integr.Amplifier
Power type and voltage Alternating Current supply (AC) / 220-240; 110-120 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 17.5 cm = 6.9 inch
Power out 40 W (70 W max.)
from Radiomuseum.org Model: Aktiv Lautsprecher SUB 05 ESP - Elac Electroacustic GmbH; Kiel
Material Wooden case
Shape Console, Lowboy (legs < 50 %).
Dimensions (WHD) 220 x 340 x 305 mm / 8.7 x 13.4 x 12 inch
Notes

Subwoofer 1-Weg Aktiv-Bassreflex-Box.
Bruttovolumen 19,5 l. Prinzip Bassreflex. Obere Grenzfrequenz 40-180 Hz, einstellbar. Übertragungsbereich 39-280 Hz. Lautstärke einstellbar. Eingangsempfindlichkeit 5 mV. Eingangswiderstand 35 k Ohm. Ausführung schwarz matt oder silber.

Net weight (2.2 lb = 1 kg) 6.5 kg / 14 lb 5.1 oz (14.317 lb)

Model page created by Günter Kudicke. See "Data change" for further contributors.
