Miracord 16 PW 16

Miracord 16 PW 16; Elac Electroacustic (ID = 2351025) R-Player
Miracord 16 PW 16; Elac Electroacustic (ID = 1687831) R-Player Miracord 16 PW 16; Elac Electroacustic (ID = 257800) R-Player
Miracord 16 PW 16; Elac Electroacustic (ID = 584390) R-Player Miracord 16 PW 16; Elac Electroacustic (ID = 676650) R-Player
Miracord 16 PW 16; Elac Electroacustic (ID = 1687832) R-Player Miracord 16 PW 16; Elac Electroacustic (ID = 1687833) R-Player
Miracord 16 PW 16; Elac Electroacustic (ID = 1687834) R-Player Miracord 16 PW 16; Elac Electroacustic (ID = 2184685) R-Player
Miracord 16 PW 16; Elac Electroacustic (ID = 2201217) R-Player Miracord 16 PW 16; Elac Electroacustic (ID = 2201218) R-Player
Use red slider bar for more.
Miracord 16 PW 16; Elac Electroacustic (ID = 1687831) R-Player

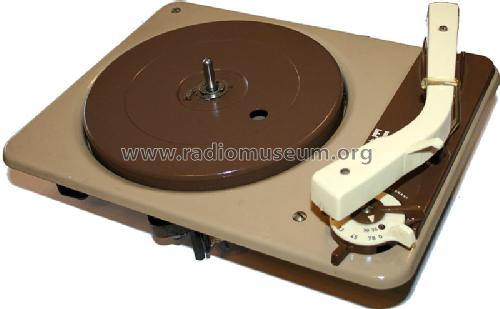

Elac Electroacustic: Miracord 16 PW 16 [R-Player] ID = 1687831 800x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Miracord 16 PW 16, Elac Electroacustic GmbH; Kiel

Country:  Germany
Manufacturer / Brand:  Elac Electroacustic GmbH; Kiel
Year: 1960–1965 Category: Sound/Video Recorder and/or Player
Wave bands - without
Details Changer (Record changer)

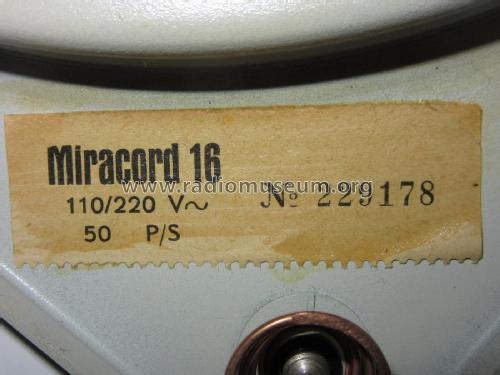

Power type and voltage Alternating Current supply (AC) / 110; 220 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Miracord 16 PW 16 - Elac Electroacustic GmbH; Kiel
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 236 x 308 x 80 mm / 9.3 x 12.1 x 3.1 inch
Notes

4 Geschwindigkeiten; Stereo-Kristall-System, 20-16000 Hz.

Das Modell wurde auch mit der Marke Imperial in Musiktruhen eingebaut.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)
Price in first year of sale 99.00 DM
External source of data Erb
Source of data HdB d.Rdf-& Ferns-GrH 1961/62 / Radiokatalog Band 2, Ernst Erb
Mentioned in -- Original prospect or advert
Literature/Schematics (1) -- Original-techn. papers.
Literature/Schematics (2) Funkschau (9/1961, S. 246)
