• Country
• Germany

• Manufacturer / Brand
• Elac Electroacustic GmbH; Kiel

• Year
• 1972–1977

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 28738

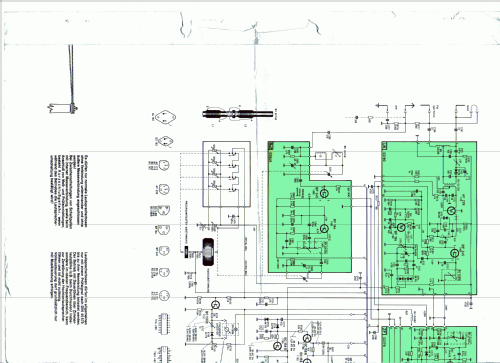

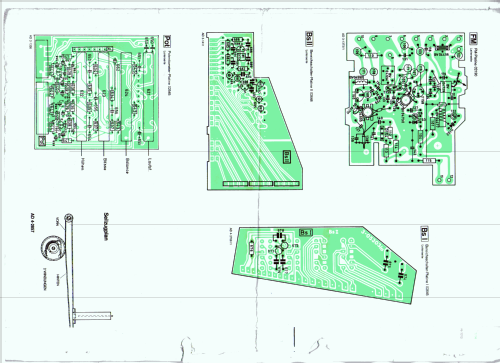

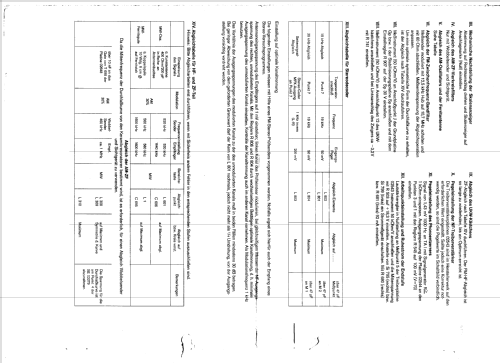

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 24

• Semiconductors
• AF239 BF245 BF194 BC159 BC415 BC179 BC238 BC301 AC132 BD163 AL102 AC173 BC158 BC148 TBA460 TCA290 BA138 BB104 AA116 AA112 BY103

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     13 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 115; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

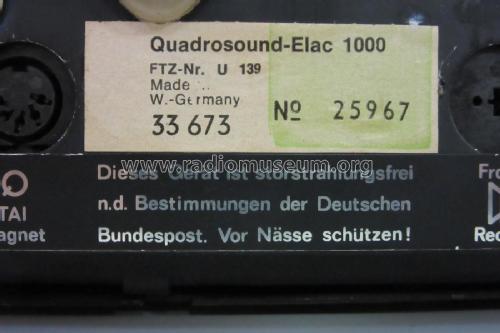

• Model: Quadrosound 1000T - Elac Electroacustic GmbH; Kiel

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 420 x 120 x 290 mm / 16.5 x 4.7 x 11.4 inch

• Notes

• Vollstereo, NF-Verstärker mit zwei Endstufen je 20 W (Sinus), Steckkartentechnik.
  4 UKW-Stationstasten, Flachbahnregler für Volume, Balance, Tiefen, Höhen, Quadrosound. AFC, Stereo-Anzeige.
  Gehäuse in Altweiss, Schwarz oder Mittelbraun.

  Halbleiterliste: nur einmal pro Typ.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• Price in first year of sale
• 768.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1972/1973 / Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1976/1977

• Other Models

• Here you find 265 models, 241 with images and 90 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Elac Electroacustic GmbH; Kiel
