A/By49 var 2

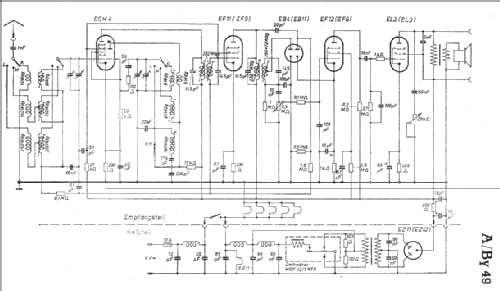

A/By49; Elcophon Gerätebau, (ID = 8334) Car Radio
A/By49; Elcophon Gerätebau, (ID = 88749) Car Radio A/By49; Elcophon Gerätebau, (ID = 88750) Car Radio
A/By49; Elcophon Gerätebau, (ID = 88751) Car Radio
Use red slider bar for more.
A/By49; Elcophon Gerätebau, (ID = 88749) Car Radio
Elcophon Gerätebau,: A/By49 [Car Radio] ID = 88749 933x553
Select picture or schematic to display from thumbnails on the right and click for download.
For model A/By49 var 2, Elcophon Gerätebau, Ing. G. Colb; Nürnberg

Country:  Germany
Manufacturer / Brand:  Elcophon Gerätebau, Ing. G. Colb; Nürnberg
Brand

Colb, Ing. G.; Nürnberg NO
Year: 1949/1950 Category: Car Radio, perhaps also + sound player/recorder
Valves / Tubes 5: ECH4 EF9 EF6 EL3 EZ12
Main principle Superheterodyne (common)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: A/By49 [var 2] - Elcophon Gerätebau, Ing. G.
Notes
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb


All listed radios etc. from Elcophon Gerätebau, Ing. G. Colb; Nürnberg
Here you find 3 models, 3 with images and 2 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
