Bearcat Scanner BC-220

Bearcat Scanner BC-220; Electra Co. / Corp. (ID = 956051) Receiver-C
Use red slider bar for more.
Bearcat Scanner BC-220; Electra Co. / Corp. (ID = 956051) Receiver-C

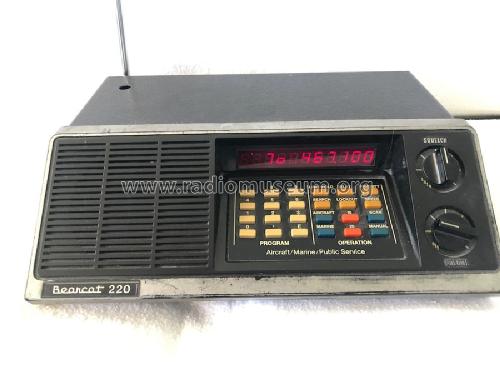

Electra Co. / Corp.: Bearcat Scanner BC-220 [Receiver-C] ID = 956051 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Bearcat Scanner BC-220, Electra Co. / Corp. (Masco); Cumberland, IN

Country:  United States of America (USA)
Manufacturer / Brand:  Electra Co. / Corp. (Masco); Cumberland, IN
Brand

Bearcat
Year: 1979 Category: Commercial Receiver (may include amateur bands)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superhet, double/triple conversion; ZF/IF 10800/400 kHz; 1 AF stage(s)
Wave bands VHF incl. FM and/or UHF (see notes for details)
Details
Power type and voltage Line / Storage batteries (perhaps also batteries) / 117; 13,8 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 8 cm = 3.1 inch
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Bearcat Scanner BC-220 - Electra Co. / Corp. Masco;
Material Metal case
Shape Tablemodel, slant panel.
Dimensions (WHD) 270 x 78 x 195 mm / 10.6 x 3.1 x 7.7 inch
Notes 20 Channels scan. 32-50 ,118-136, 144-174, 420,45-512,45 Mhz.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Source of data - - Manufacturers Literature

Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
