• Country
• United States of America (USA)

• Manufacturer / Brand
• Electrical Products Mfg.Co.; Providence, Rhode Island

• Year
• 1925

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 38061

• Number of Tubes
• 5

• Valves / Tubes

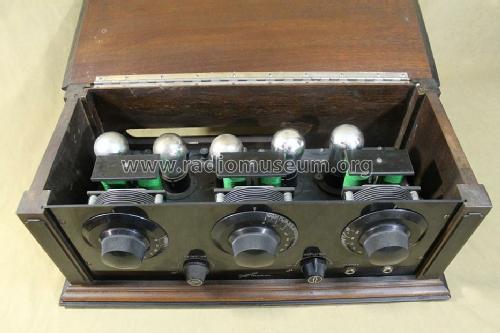

• UV201A UV201A UV201A UV201A UV201A

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown); 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org
• Model: Dymac Selecto Five 5 - Electrical Products Mfg.Co.;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 21.75 x 8.75 x 9.5 inch / 552 x 222 x 241 mm

• Notes

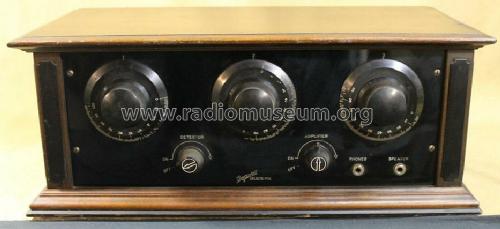

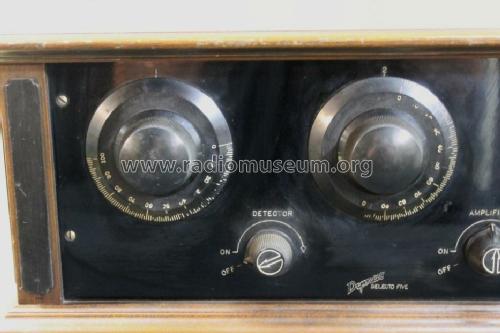

• Three dials (primary tuning control knobs).
  Electrical Products Mfg Co., Providence, Rhode Island. The ad features the Dymac Selecto Five Radio in a walnut finished mahogany cabinet with ebonized panels and base.

• Price in first year of sale
• 75.00 $

• External source of data
• Ernst Erb

• Source of data
• Radio Collector`s Guide 1921-1932

• Mentioned in
• The Radio Collector's Directory and Price Guide 1921 - 1965

• Other Models

• Here you find 4 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
