2 Speaker High Fidelity FM AM SW 950
Electro-Brand Inc.; Westchester, IL / Chicago, IL
- Country
- United States of America (USA)
- Manufacturer / Brand
- Electro-Brand Inc.; Westchester, IL / Chicago, IL
- Year
- 1960 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 334532
Electro-Brand 950 front
Electro-Brand 950 chassis
Electro-Brand 950 back
Electro-Brand 950 schema
Electro-Brand 950 dial
Electro-Brand 950 controls

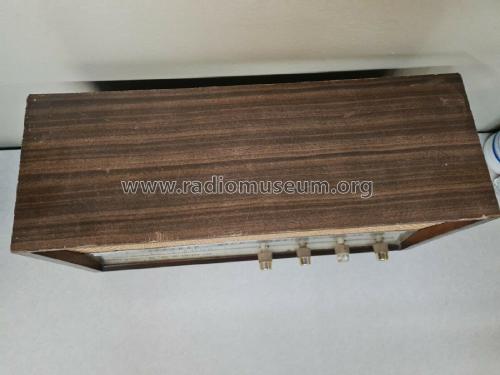

Electro-Brand 950 top
Electro-Brand 950 side
Electro-Brand 950 side
Electro-Brand 950 speakers
Electro-Brand 950 bottom
- Number of Tubes
- 7
- Number of Transistors
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Wooden case
- from Radiomuseum.org
- Model: 2 Speaker High Fidelity FM AM SW 950 - Electro-Brand Inc.;
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18.5 x 9.5 x 6.75 inch / 470 x 241 x 171 mm
- Notes
-
Phono input, MPX output
5" and 3" speakers, without crossover network
Similar to Winston AF-970 and ParkLane AF-950.
Made in Japan
- Author
- Model page created by Vic Mabus. See "Data change" for further contributors.
