• Country
• United States of America (USA)

• Manufacturer / Brand
• Electro-Voice Inc.; USA

• Year
• 1958 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 131879

• • Brand: Buchanan

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 16

• Valves / Tubes
• 6BK7A 6U8 6J6 6BA6 6BA6 6AU6 6AU6 6AL5 12AT7 6AL7 6BA6 6BE6 6AU6 12AT7 12AX7 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117V = 105 -125 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

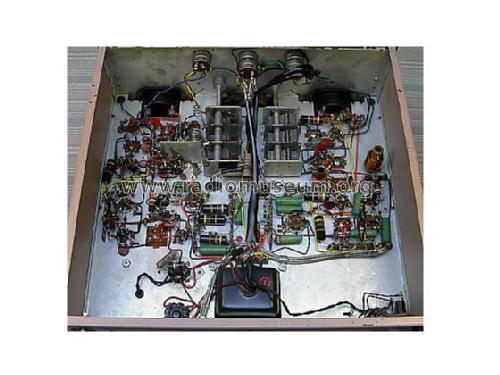

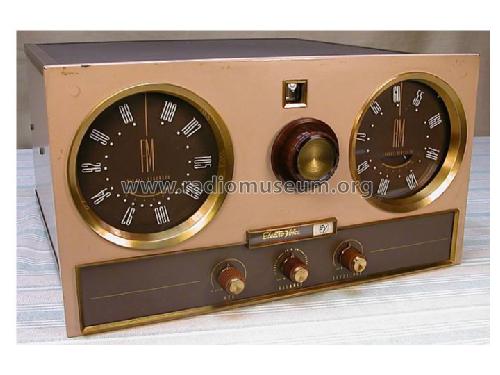

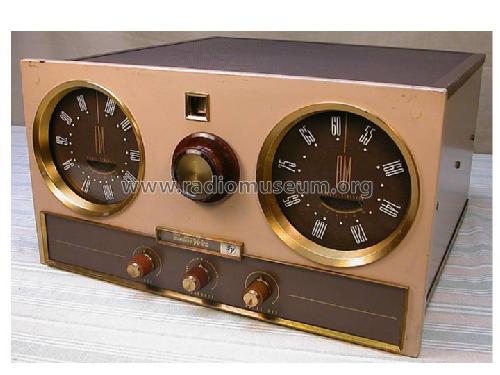

• Model: FM-AM Tuner 3304 - Electro-Voice Inc.; USA

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 15 x 8.25 x 15.75 inch / 381 x 210 x 400 mm

• Notes

• Electro-Voice model 3304 is an AC operated FM-AM tuner.

• Price in first year of sale
• 239.00 $

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)

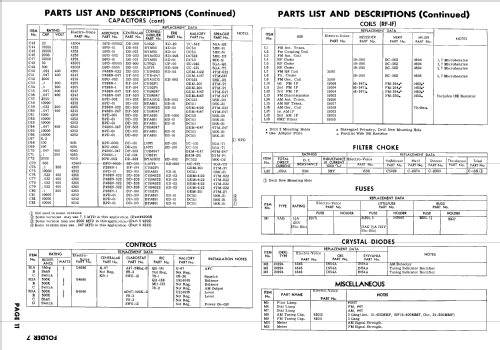

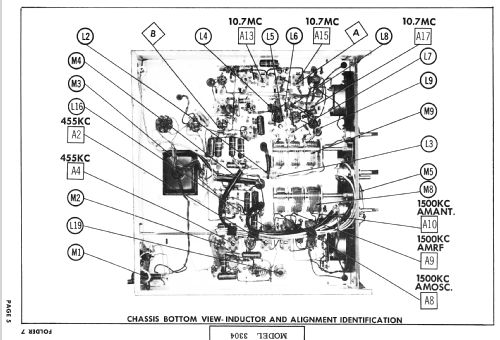

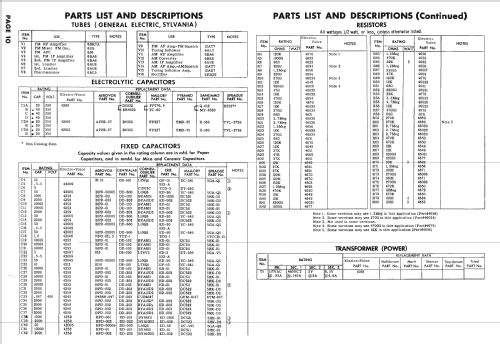

• Photofact Folder, Howard W. SAMS (Set 385 Folder 7 dated 1-58)

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.

• Other Models

• Here you find 124 models, 115 with images and 45 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Electro-Voice Inc.; USA
