• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1970 ??

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 186765

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• unknown_tr unknown_tr AC188 AC187 unknown_tr unknown_tr AC188 AC187

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Various materials

• from Radiomuseum.org

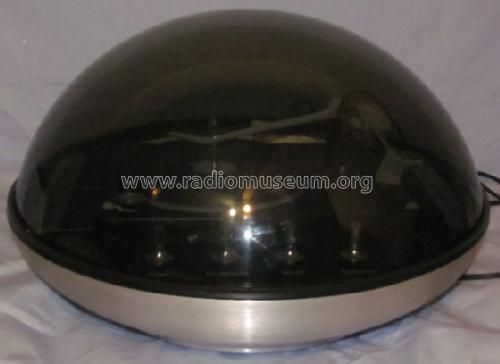

• Model: Apollo 860 - Electrohome Dominion

• Shape
• Tablemodel, low profile (big size).

• Notes

• Schematic is the same for models 860, 860U and 861.

• Author
• Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
