- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1966 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 299287

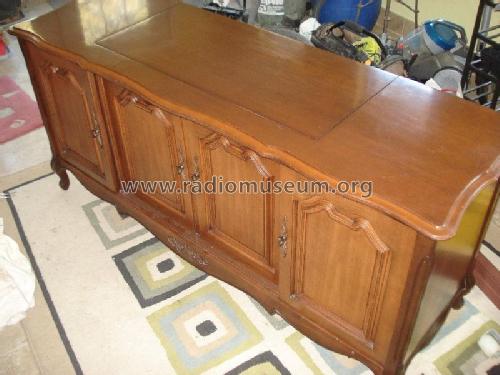

from a kijiji ad
from a kijiji ad
from a kijiji ad
from a kijiji ad
from a kijiji ad
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 24
- Semiconductors
- Main principle
- Superhet with RF-stage
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 120 Volt
- Loudspeaker
- 6 Loudspeakers
- Power out
- 30 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Cartier - Electrohome Dominion
- Shape
- Console with any shape - in general
- Notes
-
Electrohome Cartier S600-228 is a 24 transistor AM-FM stereo radio phonograph combination
Has six speakers, two 3½" tweeters, two 6" mid range and two 10" woofers, all 8 ohm VC
I has a 3 speed Dual 1009SK changer
Electrohome, made in Canada
- Literature/Schematics (1)
- - - Manufacturers Literature (Electrohome 54-1587-01 3200 7/66)
- Author
- Model page created by Steve Valeriote. See "Data change" for further contributors.
