• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1971 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 341100

Click on the schematic thumbnail to request the schematic as a free document.

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• Loudspeaker
• 4 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Circa 709 H10-2 - Electrohome Dominion

• Shape
• Console with any shape - in general

• Notes

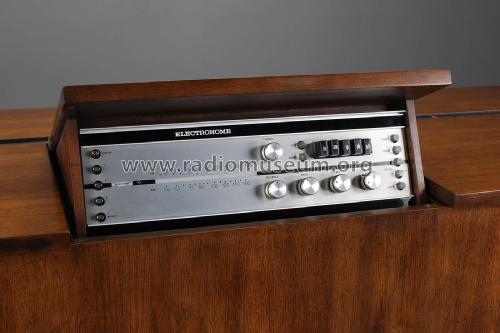

• Electrohome stereo console in a "design" piece of furniture with automated opening of lid presenting the receiver and automated lateral ejection of loudspeakers.

  Four loudspeakers (two lateral, two woofers below).

  FM can be tuned manually or using one of four preset sensitive touch switches.

  Record player is a Dual 1015.

• Author
• Model page created by Christian Don. See "Data change" for further contributors.
