• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1968 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 371520

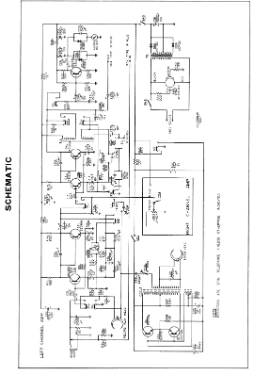

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• 2SC536 2SC693 2SC693 2SC694 2SC694 2SC694 2SC694 2SC694 2SC694 2SC536 2SC536 2SC536 2SC536

• Power type and voltage
• Alternating Current supply (AC) / 120 Volt

• from Radiomuseum.org
• Model: STD-1 - Electrohome Dominion

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes

• Here you have a 1968 era cassette tape recorder.

• Literature/Schematics (1)

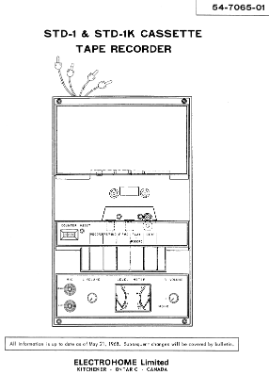

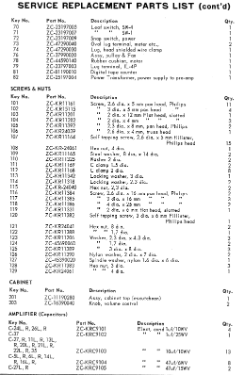

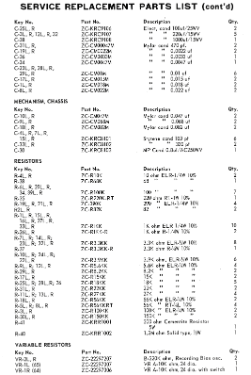

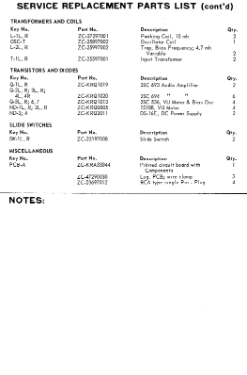

• - - Manufacturers Literature (54-7065-01)

• Author
• Model page created by Rene Chenier. See "Data change" for further contributors.
