- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1957 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 300744
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 4
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)
- Tuned circuits
- 4 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Dry Batteries / 9 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.75 inch = 7 cm
- Power out
- 0.02 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: T-103 - Electrohome Dominion
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 6.25 x 3.4 x 1.8 inch / 159 x 86 x 46 mm
- Notes
-

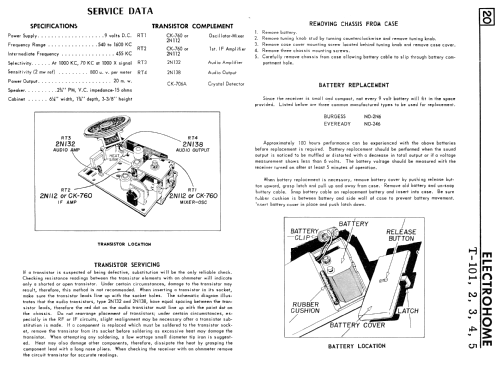

The Electrohome model T-103 is a 4-transistor pocket radio. Requires one Eveready 246 battery. Models T-101, T-102, T-103, T-104 and T-105 all have the same schematic.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1957 Supplement 41)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
- Other Models
-
Here you find 894 models, 277 with images and 807 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
