Viking RM-237R

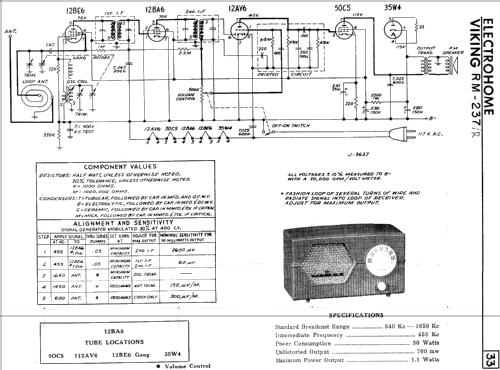

Viking RM-237R; Eaton Co. Ltd., The (ID = 483089) Radio
Viking RM-237R; Eaton Co. Ltd., The (ID = 481647) Radio Viking RM-237R; Eaton Co. Ltd., The (ID = 481649) Radio
Viking RM-237R; Eaton Co. Ltd., The (ID = 481648) Radio Viking RM-237R; Eaton Co. Ltd., The (ID = 481650) Radio
Use red slider bar for more.
Viking RM-237R; Eaton Co. Ltd., The (ID = 481647) Radio
Eaton Co. Ltd., The: Viking RM-237R [Radio] ID = 481647 933x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Viking RM-237R, Eaton Co. Ltd., The T. (Viking); Toronto

Country:  Canada
Manufacturer / Brand:  Eaton Co. Ltd., The T. (Viking); Toronto
Year: 1956 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12BE6 12BA6 12AV6 50C5 35W4
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast only (MW).
Details
Power type and voltage AC/DC-set / 117 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
Power out
from Radiomuseum.org Model: Viking RM-237R - Eaton Co. Ltd., The T. Viking;
Material Modern plastics (no Bakelite or Catalin)
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 10.75 x 6 x 5.25 inch / 273 x 152 x 133 mm
Notes A label reads "The T. Eaton Co Ltd). Electrohome made sets branded "Viking" for Eatons department stores in Canada.
Net weight (2.2 lb = 1 kg) 1.7 kg / 3 lb 11.9 oz (3.744 lb)
Source of data - - Data from my own collection
Mentioned in Machine Age to Jet Age III

Model page created by Keith Staines. See "Data change" for further contributors.



All listed radios etc. from Eaton Co. Ltd., The T. (Viking); Toronto
Here you find 235 models, 120 with images and 213 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
