• Year
  • 1960 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 241928

 Technical Specifications

  • Wave bands
  • Wave Bands given in the notes.
  • Power type and voltage
  • No Power needed
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

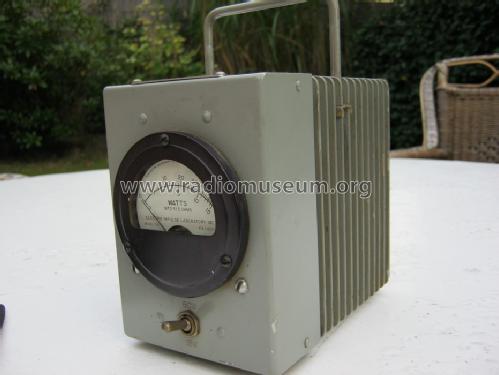

  • Model: R-F Wattmeter ME-11A/U - Electro Impulse Laboratory Inc
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 4.5 x 6.5 x 8.7 inch / 114 x 165 x 221 mm
  • Notes
  • The ME-11A/U is a 51,5 ohm dummy load with power meter. Frequency range is specified from 30 MHz up to  600 MHz. The ME-11A/U can handle power levels up to 60 W. The power indicator has two ranges: 15 and 60 W. The power range is choosen by a switch on the front panel.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Luc Smet. See "Data change" for further contributors.
