Mono Amplifier P20

Mono Amplifier P20; Electronic; Lausanne (ID = 1012259) Ampl/Mixer Mono Amplifier P20; Electronic; Lausanne (ID = 1012262) Ampl/Mixer
Mono Amplifier P20; Electronic; Lausanne (ID = 1012261) Ampl/Mixer Mono Amplifier P20; Electronic; Lausanne (ID = 1012258) Ampl/Mixer
Mono Amplifier P20; Electronic; Lausanne (ID = 1012263) Ampl/Mixer Mono Amplifier P20; Electronic; Lausanne (ID = 1012265) Ampl/Mixer
Mono Amplifier P20; Electronic; Lausanne (ID = 1012267) Ampl/Mixer Mono Amplifier P20; Electronic; Lausanne (ID = 1012268) Ampl/Mixer
Mono Amplifier P20; Electronic; Lausanne (ID = 1012269) Ampl/Mixer Mono Amplifier P20; Electronic; Lausanne (ID = 1012270) Ampl/Mixer
Use red slider bar for more.
Mono Amplifier P20; Electronic; Lausanne (ID = 1012259) Ampl/Mixer
Electronic; Lausanne: Mono Amplifier P20 [Ampl/Mixer] ID = 1012259 892x477
Select picture or schematic to display from thumbnails on the right and click for download.
For model Mono Amplifier P20, Electronic; Lausanne:
Ebay auction by user perfektworld 220796122455

Country:  Switzerland
Manufacturer / Brand:  Electronic; Lausanne
Year: 1949 ?? Category: Audio Amplifier or -mixer
Valves / Tubes 8: 7C7 7C7 7C7 7C7 7C7 4699 4699 5U4G
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker - This model requires external speaker(s).
Power out 15 W (undistorted)
from Radiomuseum.org Model: Mono Amplifier P20 - Electronic; Lausanne
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 390 x 230 x 220 mm / 15.4 x 9.1 x 8.7 inch
Notes

Mono-Verstärker mit Gegentaktendstufe

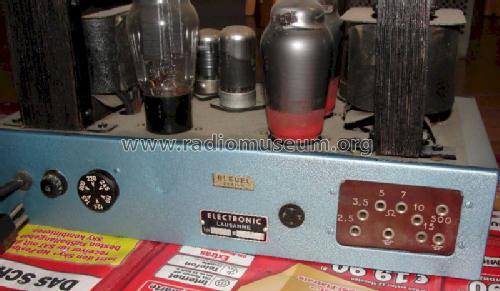

2.5 - 500 Ohm Lautpsrecher-Ausgänge

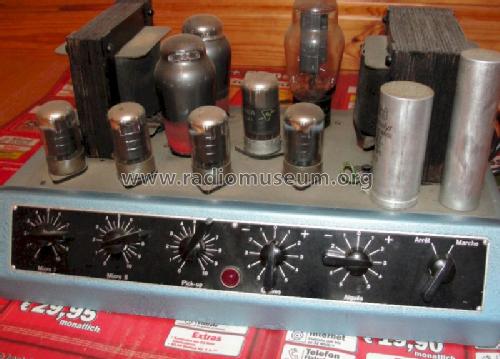

3 x DIN Eingänge für Micro I & II sowie Pick-up, französisch beschriftet
Trafo und Übertrager von Staba Elektro-Apparatebau AG
