A310

A310; Elektrotechnik (ID = 466137) Car Radio

A310; Elektrotechnik (ID = 466138) Car Radio

A310; Elektrotechnik (ID = 466139) Car Radio

A310; Elektrotechnik (ID = 466140) Car Radio

A310; Elektrotechnik (ID = 466141) Car Radio

A310; Elektrotechnik (ID = 466142) Car Radio

A310; Elektrotechnik (ID = 466144) Car Radio

A310; Elektrotechnik (ID = 466145) Car Radio
A310; Elektrotechnik (ID = 466105) Car Radio A310; Elektrotechnik (ID = 466107) Car Radio
Use red slider bar for more.
A310; Elektrotechnik (ID = 466105) Car Radio
Elektrotechnik: A310 [Car Radio] ID = 466105 795x599

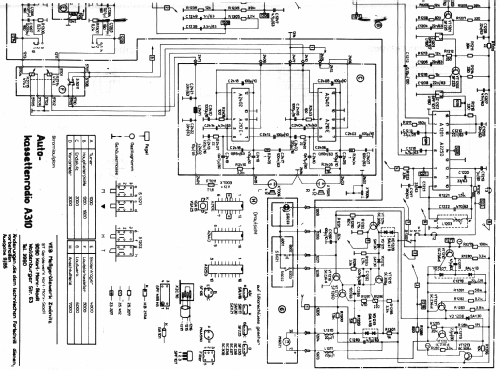

Select picture or schematic to display from thumbnails on the right and click for download.
For model A310, Elektrotechnik Eisenach, VEB, (Ostd.)

Country:  Germany
Manufacturer / Brand:  Elektrotechnik Eisenach, VEB, (Ostd.)
Year: 1983 Category: Car Radio, perhaps also + sound player/recorder
Semiconductors (the count is only for transistors) 21:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Cassette-Recorder or -Player
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker
Power out 8 W (unknown quality)
from Radiomuseum.org Model: A310 - Elektrotechnik Eisenach, VEB,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 44 x 150 mm / 7.1 x 1.7 x 5.9 inch
Notes Der Autosuper A 310 hat ein Rundfunkteil für Monobetrieb und ist eine abgerüstete Ausführung des Autosupers A 320. Das Kassettenteil ist für stereofone Wiedergabe ausgelegt. Die Ausgangsleistung liegt bei 2 x 4 Watt.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
Literature/Schematics (1) Service-DVD Funkverlag B. Hein

Model page created by Wolfgang MICHAEL. See "Data change" for further contributors.



All listed radios etc. from Elektrotechnik Eisenach, VEB, (Ostd.)
Here you find 17 models, 15 with images and 14 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
