Tournee A341

Tournee A341; Elektrotechnik (ID = 380967) Car Radio

Tournee A341; Elektrotechnik (ID = 631925) Car Radio

Tournee A341; Elektrotechnik (ID = 631926) Car Radio

Tournee A341; Elektrotechnik (ID = 631929) Car Radio

Tournee A341; Elektrotechnik (ID = 631930) Car Radio

Tournee A341; Elektrotechnik (ID = 631931) Car Radio

Tournee A341; Elektrotechnik (ID = 1917287) Car Radio

Tournee A341; Elektrotechnik (ID = 1917468) Car Radio
Tournee A341; Elektrotechnik (ID = 2400839) Car Radio Tournee A341; Elektrotechnik (ID = 2400840) Car Radio
Tournee A341; Elektrotechnik (ID = 1076317) Car Radio Tournee A341; Elektrotechnik (ID = 241167) Car Radio
Tournee A341; Elektrotechnik (ID = 1076326) Car Radio Tournee A341; Elektrotechnik (ID = 1917285) Car Radio
Tournee A341; Elektrotechnik (ID = 1917286) Car Radio Tournee A341; Elektrotechnik (ID = 1917288) Car Radio
Tournee A341; Elektrotechnik (ID = 1917289) Car Radio Tournee A341; Elektrotechnik (ID = 2097131) Car Radio
Use red slider bar for more.
Tournee A341; Elektrotechnik (ID = 2400839) Car Radio

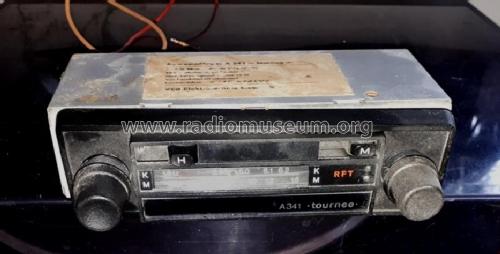

Elektrotechnik: Tournee A341 [Car Radio] ID = 2400839 933x475
Select picture or schematic to display from thumbnails on the right and click for download.
For model Tournee A341, Elektrotechnik Eisenach, VEB, (Ostd.)

Country:  Germany
Manufacturer / Brand:  Elektrotechnik Eisenach, VEB, (Ostd.)
Year: 1985–1988 Category: Car Radio, perhaps also + sound player/recorder
Main principle Superheterodyne (common); ZF/IF 455 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt
Loudspeaker - This model requires external speaker(s).
Power out 4 W (unknown quality)
from Radiomuseum.org Model: Tournee A341 - Elektrotechnik Eisenach, VEB,
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 180 x 44 x 70 mm / 7.1 x 1.7 x 2.8 inch
Notes 4 Skalenreiter. 2 Schaltkreise, ein Transistor. Kurzwelle nur 49-m-Band.
Vorgestellt auf der Leipziger Frühjahrsmesse 1985.
Net weight (2.2 lb = 1 kg) 0.6 kg / 1 lb 5.1 oz (1.322 lb)
Price in first year of sale 330.00 DM

Model page created by Wolfgang Lill. See "Data change" for further contributors.
