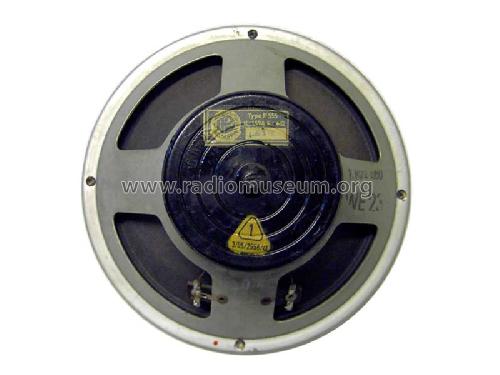

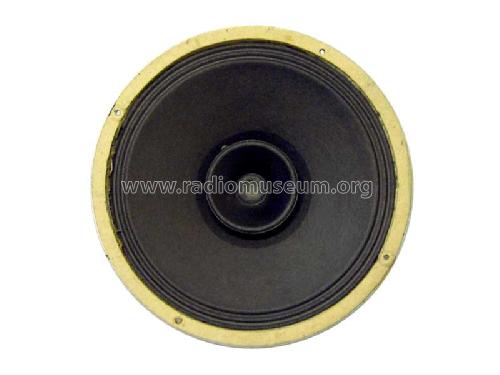

Lautsprecherchassis P 555
 |
 |
Use red slider bar for more.
Elektrophysikalische: Lautsprecherchassis P 555 [Speaker-P] ID = 835663 800x600
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
Brand
|
Elektro-Physik.. | ||||
|---|---|---|---|---|---|
| Year: 1960 | Category: Loudspeaker, headphone or earphone |
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | No Power needed |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 16.5 cm = 6.5 inch |
| Power out | |
| from Radiomuseum.org | Model: Lautsprecherchassis P 555 - Elektrophysikalische |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Dimensions (WHD) | 165 x 73 x 165 mm / 6.5 x 2.9 x 6.5 inch |
| Notes | Anwendungsgebiet: Universallautsprecher Nennbelastbarkeit: 1,5W. Art: Breitbandlautsprecher mit Hochtonkegel Nennscheinwiderstand: 4 Ω Magnetsystem: Dauermagnet Type 19/4 Korb: Blech offen Korbform: kreisrund ohne Befestigungsohren mit Befestigungslöchern Befestigungslochkreis: 155 mm Schallwandlochdurchmesser: 145 mm. |
| Net weight (2.2 lb = 1 kg) | 0.7 kg / 1 lb 8.7 oz (1.542 lb) |
| Collectors' prices |
Model page created by Jürgen Tiedmann. See "Data change" for further contributors.
