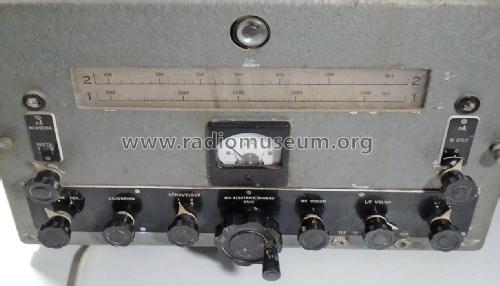

Beacon and Direction Finding Receiver 16PM5-1.3

Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2483564) Commercial Re Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2483567) Commercial Re
Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2483565) Commercial Re Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2485663) Commercial Re
Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2483570) Commercial Re Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2485662) Commercial Re
Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2483566) Commercial Re Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2483569) Commercial Re
Use red slider bar for more.
Beacon and Direction Finding Receiver 16PM5-1.3; Elektrisk Bureau, A/ (ID = 2483564) Commercial Re
Elektrisk Bureau, A/: Beacon and Direction Finding Receiver 16PM5-1.3 [Commercial Re] ID = 2483564 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model Beacon and Direction Finding Receiver 16PM5-1.3, Elektrisk Bureau, A/S; Oslo:
ebay.nl VK: ml-it-trading-sl #163623294771

Country:  Norway
Manufacturer / Brand:  Elektrisk Bureau, A/S; Oslo
Year: 1955 ?? Category: Commercial Receiver (may include amateur bands)
Valves / Tubes 10:
schematic requested
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: Beacon and Direction Finding Receiver 16PM5-1.3 - Elektrisk Bureau, A/S; Oslo
Material Metal case
Shape Boatanchor (heavy military or commercial set >20 kg).
Notes

The Beacon and Direction Finding Receiver 16PM5-1.3 was intended to use at ships like fish trawlers.

Coverage:

  • Band 1: 1500 - 3500 kHz
  • Band 2: 250 - 500 kHz

Model page created by Aglef Tröger. See "Data change" for further contributors.
