Superior S

Superior S; Elektrit, Wilno (ID = 335264) Radio
Superior S; Elektrit, Wilno (ID = 1471382) Radio Superior S; Elektrit, Wilno (ID = 1471383) Radio
Superior S; Elektrit, Wilno (ID = 1471384) Radio Superior S; Elektrit, Wilno (ID = 1471386) Radio

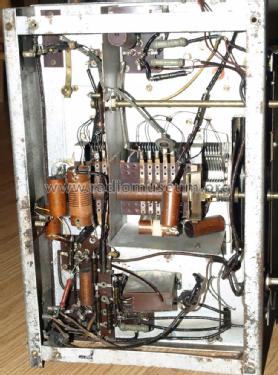

Superior S; Elektrit, Wilno (ID = 1471387) Radio Superior S; Elektrit, Wilno (ID = 1471388) Radio
Superior S; Elektrit, Wilno (ID = 1471393) Radio
Use red slider bar for more.
Superior S; Elektrit, Wilno (ID = 1471382) Radio
Elektrit, Wilno: Superior S [Radio] ID = 1471382 933x983
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superior S, Elektrit, Wilno

Country:  Poland
Manufacturer / Brand:  Elektrit, Wilno
Year: 1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: B2047 B2046 BL2 1927
Main principle TRF with regeneration
Tuned circuits 3 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Direct Current supply (DC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 19 cm = 7.5 inch
Power out
from Radiomuseum.org Model: Superior S - Elektrit, Wilno
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 380 x 410 x 260 mm / 15 x 16.1 x 10.2 inch
Net weight (2.2 lb = 1 kg) 11 kg / 24 lb 3.7 oz (24.229 lb)
Source of data -- Schematic

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Elektrit, Wilno
Here you find 71 models, 50 with images and 15 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Elektrit, Wilno: Superior S
Threads: 1 | Posts: 1
Hits: 1409     Replies: 0
elektrit: S; Suporior
Tomasz Szczesniak
15.Jun.13
  1

Right name for this radio is 'Superior S', 'Suporior' is misspelling.


Elektrit, Wilno: Superior S
End of forum contributions about this model
