Netzgerät EA-3006N

Netzgerät EA-3006N; Elektro-Automatik EA (ID = 1504653) Power-S Netzgerät EA-3006N; Elektro-Automatik EA (ID = 1504656) Power-S
Netzgerät EA-3006N; Elektro-Automatik EA (ID = 1504663) Power-S Netzgerät EA-3006N; Elektro-Automatik EA (ID = 1504670) Power-S
Netzgerät EA-3006N; Elektro-Automatik EA (ID = 2042800) Power-S
Use red slider bar for more.

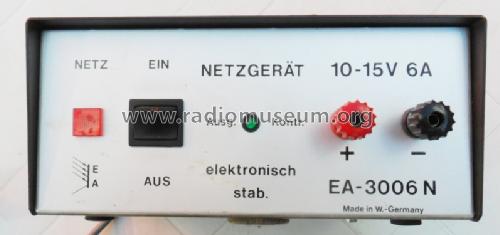

Netzgerät EA-3006N; Elektro-Automatik EA (ID = 1504653) Power-S
Elektro-Automatik EA: Netzgerät EA-3006N [Power-S] ID = 1504653 797x376
Select picture or schematic to display from thumbnails on the right and click for download.
For model Netzgerät EA-3006N, Elektro-Automatik (EA); Viersen

Country:  Germany
Manufacturer / Brand:  Elektro-Automatik (EA); Viersen
Year: 1980 ?? Category: Power supply/conditioner or battery or charger
Semiconductors (the count is only for transistors) 3:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Netzgerät EA-3006N - Elektro-Automatik EA; Viersen
Material Metal case
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 190 x 90 x 170 mm / 7.5 x 3.5 x 6.7 inch
Notes

Netzgerät stabilisiert,  Ausgang: 10...15V / 6A

Net weight (2.2 lb = 1 kg) 4.5 kg / 9 lb 14.6 oz (9.912 lb)

Model page created by Oskar Elm. See "Data change" for further contributors.
