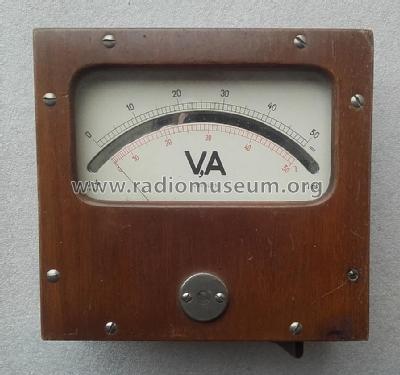

Volt - Amperemeter
Elektrodyn, Emanuel Mandl; 1090 Wien
- Country
- Austria
- Manufacturer / Brand
- Elektrodyn, Emanuel Mandl; 1090 Wien
- Year
- 1948 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 306405
oberseite mit Messwerk
Umschalter
Anschlussbuchsen auf der Rückseite
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - - No sound reproduction output.
- Material
- Wooden case
- from Radiomuseum.org
- Model: Volt - Amperemeter - Elektrodyn, Emanuel Mandl; 109
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 155 x 155 x 75 mm / 6.1 x 6.1 x 3 inch
- Notes
-
Messbereiche: 5, 50, 250, 500 V / 5, 50, 250, 500 mA AC/DC
Drehspulmesswerk mit Gleichrichter
- Net weight (2.2 lb = 1 kg)
- 0.850 kg / 1 lb 14 oz (1.872 lb)
- Author
- Model page created by Thomas Loidl. See "Data change" for further contributors.
