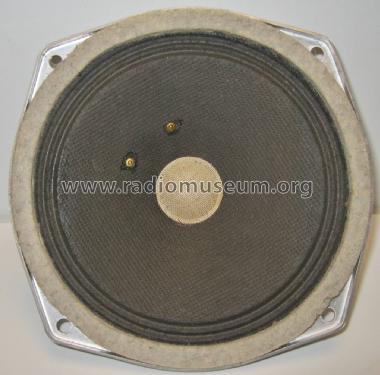

Lautsprecherchassis LP 471/2

Lautsprecherchassis LP 471/2; Elektrogerätebau (ID = 2017228) Speaker-P Lautsprecherchassis LP 471/2; Elektrogerätebau (ID = 2017229) Speaker-P
Lautsprecherchassis LP 471/2; Elektrogerätebau (ID = 2017230) Speaker-P Lautsprecherchassis LP 471/2; Elektrogerätebau (ID = 2369640) Speaker-P
Lautsprecherchassis LP 471/2; Elektrogerätebau (ID = 2369642) Speaker-P
Use red slider bar for more.
Lautsprecherchassis LP 471/2; Elektrogerätebau (ID = 2017228) Speaker-P
Elektrogerätebau: Lautsprecherchassis LP 471/2 [Speaker-P] ID = 2017228 1400x1392
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecherchassis LP 471/2, Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)

Country:  Germany
Manufacturer / Brand:  Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)
Brand

EGB
Year: 1962 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out 3 W (unknown quality)
from Radiomuseum.org Model: Lautsprecherchassis LP 471/2 - Elektrogerätebau Leipzig, VEB;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 130 x 130 x 49 mm / 5.1 x 5.1 x 1.9 inch
Notes

Rundes Breitband-Lautsprecherchassis ohne Hochtonkegel; Impedanz: 6 Ω, Leistung: max. 3 VA; Korb: Aluminiumblech, 4 Befestigungslöcher, Lochabstand (diagonal): 135 mm.

Net weight (2.2 lb = 1 kg) 0.322 kg / 0 lb 11.3 oz (0.709 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
