Lautsprecherchassis LP 559 HS

Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 1836783) Speaker-P

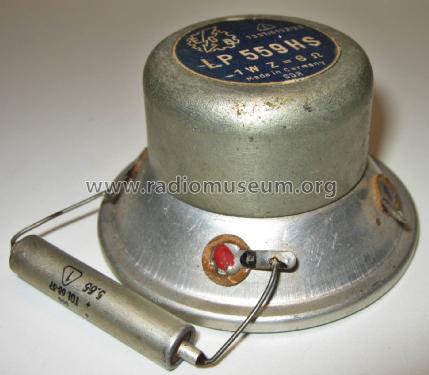

Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 2021261) Speaker-P Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 2021262) Speaker-P
Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 2021263) Speaker-P Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 2368926) Speaker-P

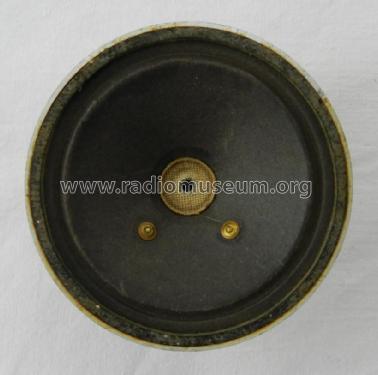

Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 2368931) Speaker-P Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 2368939) Speaker-P
Use red slider bar for more.
Lautsprecherchassis LP 559 HS; Elektrogerätebau (ID = 2021261) Speaker-P
Elektrogerätebau: Lautsprecherchassis LP 559 HS [Speaker-P] ID = 2021261 1400x1076
Select picture or schematic to display from thumbnails on the right and click for download.
For model Lautsprecherchassis LP 559 HS, Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)

Country:  Germany
Manufacturer / Brand:  Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)
Brand

EGB
Year: 1960 ?? Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.6 cm = 2.6 inch
Power out 1 W (unknown quality)
from Radiomuseum.org Model: Lautsprecherchassis LP 559 HS - Elektrogerätebau Leipzig, VEB;
Material Metal case
Shape Chassis only or for «building in»
Dimensions (WHD) 66 x 66 x 37 mm / 2.6 x 2.6 x 1.5 inch
Notes

Rundes Hochton-Lautsprecherchassis; Frequenzbereich: 3...18 kHz; Impedanz: 6 Ω (bei 5 kHz); Magnetwerkstoff: Maniperm 4; Korb: Aluminiumblech, geschlossen.

Net weight (2.2 lb = 1 kg) 0.165 kg / 0 lb 5.8 oz (0.363 lb)

Model page created by Michael Mischke. See "Data change" for further contributors.
