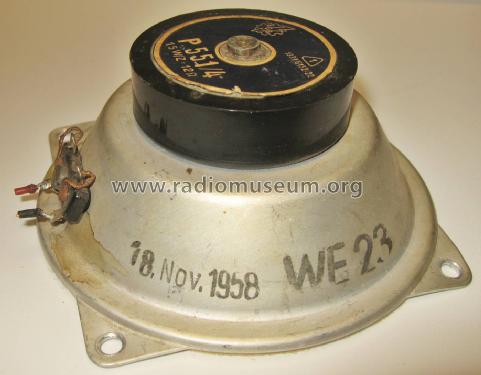

Lautsprecherchassis P551/4
Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)
- Year
- 1958 ?
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 283988
-
- Brand: EGB
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10.1 cm = 4 inch
- Power out
- 1.5 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Lautsprecherchassis P551/4 - Elektrogerätebau Leipzig, VEB;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 101 x 101 x 45 mm / 4 x 4 x 1.8 inch
- Notes
-
Hochton-Lautsprecherchassis; Impedanz: 12 Ω; Korb: geschlossen, Aluminiumblech mit 4 Befestigungslaschen.
- Net weight (2.2 lb = 1 kg)
- 0.175 kg / 0 lb 6.2 oz (0.385 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
