Multimeter C4340 - Ц 4340

Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1380003) Equipment Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1380004) Equipment
Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1380005) Equipment Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1380006) Equipment
Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1380007) Equipment Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1486211) Equipment
Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1936250) Equipment
Use red slider bar for more.
Multimeter C4340 - Ц 4340; Elektroizmeritel, (ID = 1380003) Equipment
Elektroizmeritel,: Multimeter C4340 - Ц 4340 [Equipment] ID = 1380003 933x525
Select picture or schematic to display from thumbnails on the right and click for download.
For model Multimeter C4340 - Ц 4340, Elektroizmeritel, Zhitomir, SU (soviet union)

Country:  Soviet Union
Manufacturer / Brand:  Elektroizmeritel, Zhitomir, SU (soviet union)
Year: 1985 ?? Category: Service- or Lab Equipment
Wave bands - without
Details

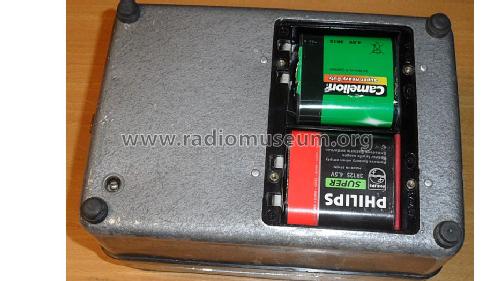

Power type and voltage Dry Batteries / 2 x 4,5 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Multimeter C4340 - Ц 4340 - Elektroizmeritel, Zhitomir,
Material Metal case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 255 x 190 x 130 mm / 10 x 7.5 x 5.1 inch
Notes

Analoges Multimeter, Messmöglichkeiten: Wechselspannung, Gleichspannung, Strom, Widerstand.

Gleich- und Wechselstrom in 10 Bereichen von 0...0,05 mA bis 5 A
Spannungen in 7 Meßbereichen von - 0,5 Volt bis 1000 Volt, Widerstände x 1 x 10 x 100 x 1000 x 10000 KOhm.
Batteriespannungsanzeige.

Net weight (2.2 lb = 1 kg) 3 kg / 6 lb 9.7 oz (6.608 lb)

Model page created by Wolfgang Lill. See "Data change" for further contributors.
