Netzgerät 100 VA
 |
 |
 |
 |
 |
 |
Use red slider bar for more.

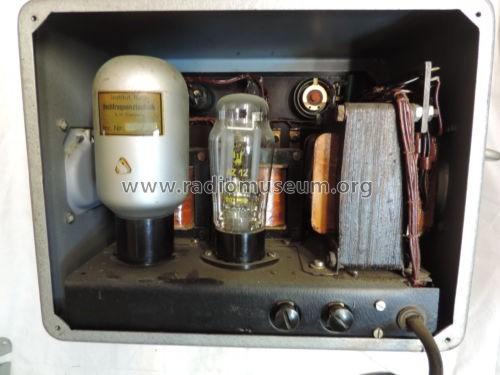

Elektromess Dresden;: Netzgerät 100 VA [Power-S] ID = 720205 640x425
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
|
alternative name
|
Bittorf, W. | ||||
|---|---|---|---|---|---|
| Year: 1956 ?? | Category: Power supply/conditioner or battery or charger | ||||
| Valves / Tubes | 1: AZ12 STV280/80 | ||||
| schematic requested | |||||
| Wave bands | - without |
|---|---|
| Details | Power Supply (not only Batt.El.) |
| Power type and voltage | Alternating Current supply (AC) / 220 Volt |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Netzgerät 100 VA - Elektromess Dresden; PGH Ostd |
| Material | Metal case |
| Shape | Tablemodel, with any shape - general. |

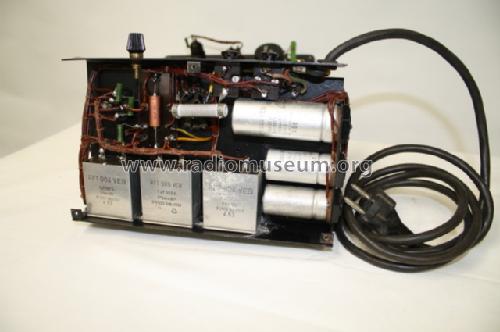

| Notes | Experimentier-Netzteil für verschiedene Heizspannungen, stabilisierte Anoden- und regelbare Gitterspannungen. Vergleiche mit Stromversorgungsgerät (Bittorf) |
| Collectors' prices |
Model page created by a member from A. See "Data change" for further contributors.
