• Year
  • 1979–1982
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 178224

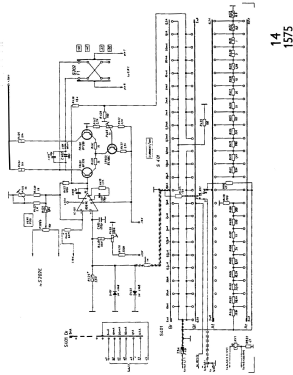

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Characteriscope-Z 1575 / TR-4805 - EMG, Orion-EMG, Elektronikus M
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 262 x 252 x 343 mm / 10.3 x 9.9 x 13.5 inch
  • Notes
  • Test Adapter TR-4805-2 / 1575-2 (complett).
  • Net weight (2.2 lb = 1 kg)
  • 12.5 kg / 27 lb 8.5 oz (27.533 lb)
  • Source of data
  • -- Original prospect or advert
