Dual Beam Oscilloscope 1553 (TR-4657)

Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 732491) Equipment Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 1341519) Equipment
Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 1341522) Equipment Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 732492) Equipment
Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 909835) Equipment Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 1341520) Equipment

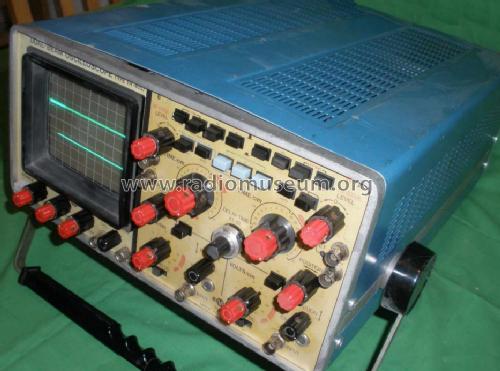

Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 1341521) Equipment Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 1341524) Equipment
Use red slider bar for more.
Dual Beam Oscilloscope 1553 ; EMG, Orion-EMG, (ID = 732491) Equipment
EMG, Orion-EMG,: Dual Beam Oscilloscope 1553 [Equipment] ID = 732491 624x502
Select picture or schematic to display from thumbnails on the right and click for download.
For model Dual Beam Oscilloscope 1553 (TR-4657), EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest:
STS Archív.

Country:  Hungary
Manufacturer / Brand:  EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
Year: 1981–1998 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Dual Beam Oscilloscope 1553 - EMG, Orion-EMG, Elektronikus M
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 333 x 165 x 450 mm / 13.1 x 6.5 x 17.7 inch
Notes DC - 30 MHz, sensibility: 10 mV/div. Dual time base.
Net weight (2.2 lb = 1 kg) 13 kg / 28 lb 10.1 oz (28.634 lb)
Literature/Schematics (1) MTA Kölcsönmüszerek Jegyzéke, Bp.1991

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
