• Country
• Hungary

• Manufacturer / Brand
• EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

• Year
• 1959

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 162787

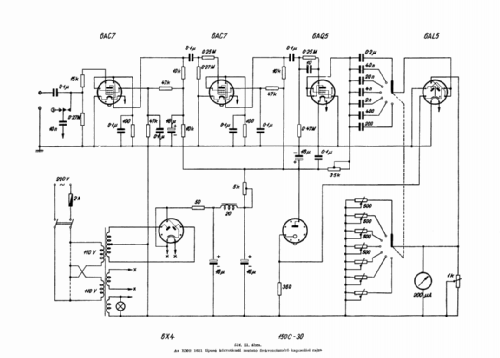

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6AC7 6AC7 6AQ5 6AL5 6X4 VR150

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Frequency Counter 1631 - EMG, Orion-EMG, Elektronikus M

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 350 x 280 x 180 mm / 13.8 x 11 x 7.1 inch

• Notes
• 20 Hz - 100 kHz (7 ranges) +/- 3%. Uin: 100 mV - 100 V.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 4,500.00 HUF

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (4)
• EMG katalog 1959.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
