Funktionsgenerator TR-0458B

Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 2111404) Equipment

Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 2111406) Equipment

Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 2111407) Equipment
Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 647531) Equipment Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 647529) Equipment
Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 647528) Equipment Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 647525) Equipment
Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 647526) Equipment Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 647530) Equipment
Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 1268154) Equipment Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 1268155) Equipment
Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 1268156) Equipment Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 1268159) Equipment
Use red slider bar for more.
Funktionsgenerator TR-0458B; EMG, Orion-EMG, (ID = 647531) Equipment
EMG, Orion-EMG,: Funktionsgenerator TR-0458B [Equipment] ID = 647531 924x648
Select picture or schematic to display from thumbnails on the right and click for download.
For model Funktionsgenerator TR-0458B, EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

Country:  Hungary
Manufacturer / Brand:  EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
Year: 1979 ?? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage 110; 117; 220; 240 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Funktionsgenerator TR-0458B - EMG, Orion-EMG, Elektronikus M
Material Metal case
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 220 x 118 x 325 mm / 8.7 x 4.6 x 12.8 inch

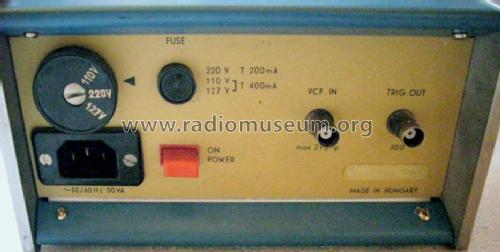

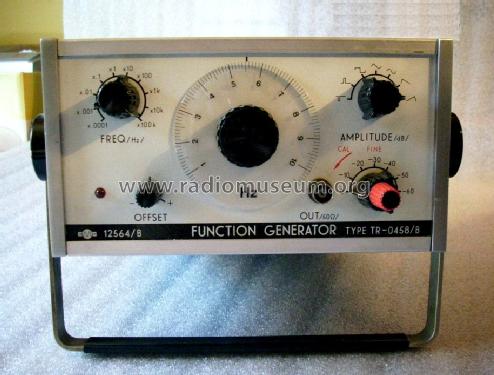

Notes Funktionsgenerator (sinus/ Rechteck/ Sägezahn), Frequenz: 10 Schaltstellungen (x-0001-x-100kHz), Amplidude regelbar 0 bis -60dB, Ausgang 50Ohm, VCF in max. 2 Volt p-p, Trig out 50Ohm, schwenkbarer und rastbarer Aufstell/Tragbügel.
Net weight (2.2 lb = 1 kg) 4.7 kg / 10 lb 5.6 oz (10.352 lb)

Model page created by Peter Roggenhofer † 25.4.18. See "Data change" for further contributors.
