• Country
• Hungary

• Manufacturer / Brand
• EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 149427

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

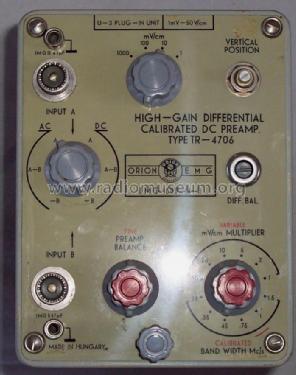

• Model: High-Gain adaptor 1589-U-3/TR 4706 - EMG, Orion-EMG, Elektronikus M

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 140 x 180 x 255 mm / 5.5 x 7.1 x 10 inch

• Notes

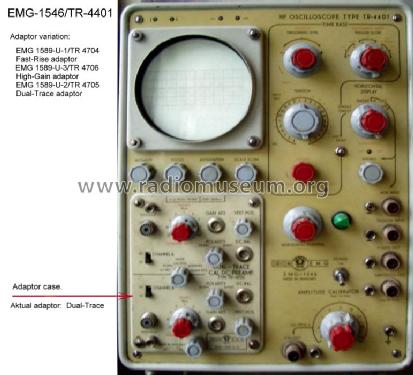

• With EMG 1546/TR-4401. Y: 0-1,5 MHz 50 mV/cm 0-250 kHZ 1 mV/cm.

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)

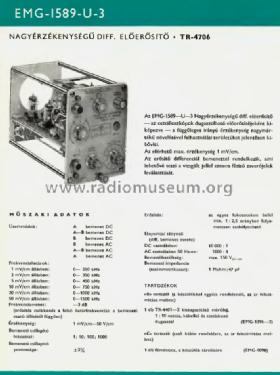

• EMG Katalog 1967.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
