• Country
• Hungary

• Manufacturer / Brand
• EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

• Year
• 1959–1966

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 170312

• Number of Tubes
• 24

• Valves / Tubes

• Wave bands
• - without

• Details
• Power Supply (not only Batt.El.)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

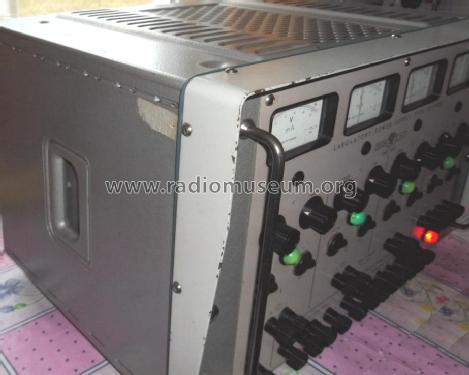

• Model: Lab. Power Supply 1833/ TR-9102 - EMG, Orion-EMG, Elektronikus M

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 500 x 325 x 385 mm / 19.7 x 12.8 x 15.2 inch

• Notes
• Laboratory Stabilized Power Supply, 2×80 V, 100 mA; 80-300 V 50mA; 0-100 V 1 mA; 0-10 V 1 mA.

• Net weight (2.2 lb = 1 kg)
• 42 kg / 92 lb 8.2 oz (92.511 lb)

• Source of data
• -- Original-techn. papers.

• Literature/Schematics (1)

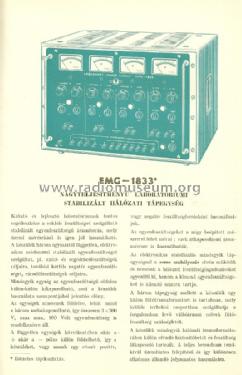

• EMG Katalog 1967.

• Literature/Schematics (4)
• EMG katalog 1959

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
