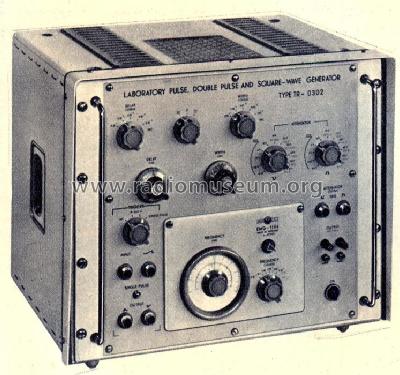

Laboratory Pulse Generator 1154 / TR-0302

EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

  • Year
  • 1969
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 170191

 Technical Specifications

  • Number of Tubes
  • 49
  • Valves / Tubes
  • Number of Transistors
  • 4
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 127; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Laboratory Pulse Generator 1154 / TR-0302 - EMG, Orion-EMG, Elektronikus M
  • Dimensions (WHD)
  • 500 x 445 x 380 mm / 19.7 x 17.5 x 15 inch
  • Notes
  • Laboratory Pulse, Double Pulse and Square Wave Generator 0,1 Hz - 1 MHz 100 ns - 11 msec, 2 mV- 50 V.
  • Net weight (2.2 lb = 1 kg)
  • 40 kg / 88 lb 1.7 oz (88.106 lb)
  • Source of data
  • -- Original-techn. papers.
  • Literature/Schematics (1)
  • EMG Katalog 1967.
