EMG, Orion-EMG,: Oscilloscope 1546/TR-4401 [Equipment] ID = 580179 557x700

Select picture or schematic to display from thumbnails on the right and click for download.

For model Oscilloscope 1546/TR-4401, EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest:
Thanks for Mr.Rosta György Hungary, Budapest!

Country:

Hungary

Manufacturer / Brand:

EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

Year: 1966–1970

Category: Service- or Lab Equipment

Valves / Tubes

63:

Semiconductors (the count is only for transistors)

Wave bands	- without
Details
Power type and voltage	Alternating Current supply (AC) / 220 Volt
Loudspeaker	- - No sound reproduction output.
Power out
from Radiomuseum.org	Model: Oscilloscope 1546/TR-4401 - EMG, Orion-EMG, Elektronikus M
Material	Metal case
Shape	Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD)	320 x 430 x 620 mm / 12.6 x 16.9 x 24.4 inch

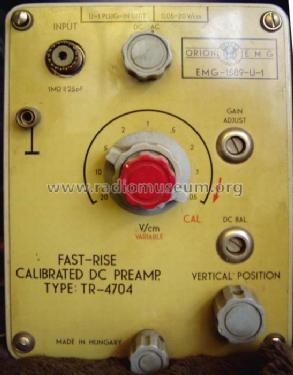

Notes	With adaptor: EMG 1589-U-1/TR 4704 Fast-Rise adaptor EMG 1589-U-3/TR 4706 High-Gain adaptor EMG 1589-U-2/TR 4705 Dual-Trace adaptor
Net weight (2.2 lb = 1 kg)	40 kg / 88 lb 1.7 oz (88.106 lb)
Source of data	-- Collector info (Sammler)
Literature/Schematics (1)	EMG Katalog 1967.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
