Photorecorder with Brand Oscilloscope 1578E

Photorecorder with Brand Oscilloscope 1578E; EMG, Orion-EMG, (ID = 2088443) Equipment Photorecorder with Brand Oscilloscope 1578E; EMG, Orion-EMG, (ID = 2088444) Equipment
Photorecorder with Brand Oscilloscope 1578E; EMG, Orion-EMG, (ID = 2088446) Equipment
Use red slider bar for more.
Photorecorder with Brand Oscilloscope 1578E; EMG, Orion-EMG, (ID = 2088443) Equipment

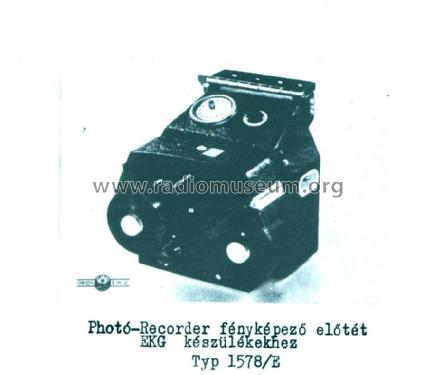

EMG, Orion-EMG,: Photorecorder with Brand Oscilloscope 1578E [Equipment] ID = 2088443 908x770
Select picture or schematic to display from thumbnails on the right and click for download.
For model Photorecorder with Brand Oscilloscope 1578E, EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest:
Original prospekt. Thanks for the photos, Mr. Sándor Perneky!

Country:  Hungary
Manufacturer / Brand:  EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
Year: 1957 ? Category: Service- or Lab Equipment
Wave bands - without
Details
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Photorecorder with Brand Oscilloscope 1578E - EMG, Orion-EMG, Elektronikus M
Material Metal case
Shape Chassis only or for «building in»
Notes

ECG recorder from oscilloscope screen to film. Speed: 30-90-200 mm/sec, with 35 mm film.

Net weight (2.2 lb = 1 kg) 7 kg / 15 lb 6.7 oz (15.419 lb)
Mentioned in -- Original prospect or advert

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
