PLL Function Generator 12571/TR-0465

PLL Function Generator 12571/TR-0465; Elektronikus (ID = 665414) Equipment PLL Function Generator 12571/TR-0465; Elektronikus (ID = 665415) Equipment
PLL Function Generator 12571/TR-0465; Elektronikus (ID = 855103) Equipment PLL Function Generator 12571/TR-0465; Elektronikus (ID = 908768) Equipment
PLL Function Generator 12571/TR-0465; Elektronikus (ID = 1698496) Equipment PLL Function Generator 12571/TR-0465; Elektronikus (ID = 2176193) Equipment
PLL Function Generator 12571/TR-0465; Elektronikus (ID = 2176194) Equipment PLL Function Generator 12571/TR-0465; Elektronikus (ID = 2176195) Equipment
PLL Function Generator 12571/TR-0465; Elektronikus (ID = 2176197) Equipment PLL Function Generator 12571/TR-0465; Elektronikus (ID = 2176199) Equipment
Use red slider bar for more.

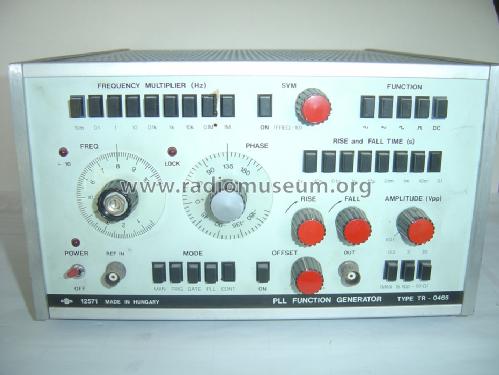

PLL Function Generator 12571/TR-0465; Elektronikus (ID = 665414) Equipment
Elektronikus: PLL Function Generator 12571/TR-0465 [Equipment] ID = 665414 932x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model PLL Function Generator 12571/TR-0465, Elektronikus Mérökészülélek Gyára (EMG)

Country:  Hungary
Manufacturer / Brand:  Elektronikus Mérökészülélek Gyára (EMG)
Year: 1981/1982 Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) Semiconductors present.
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: PLL Function Generator 12571/TR-0465 - Elektronikus Mérökészülélek Gy
Material Metal case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 266 x 153 x 308 mm / 10.5 x 6 x 12.1 inch
Notes Frequenzbereiche: 0,01 Hz/ 0.1 Hz/ 1 Hz/ 10 Hz/ 100 Hz/ 1 kHz/ 10 kHz/ 100 kHz/ 1 MHz;
variabel einstellbarer Faktor 0,5 - 10,5;
Kurvenform: Sinus / Dreieck / Rechteck / Puls / DC;
Anstiegs- und Abfallzeit einstellbar 40 ns bis 0,1 s.
Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Collectors' prices

Model page created by Wolfgang Lill. See "Data change" for further contributors.
