Power Supply Unit EDS-4971

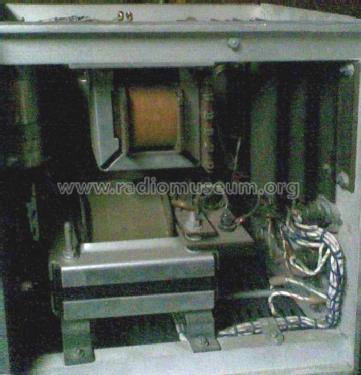

Power Supply Unit EDS-4971; EMG, Orion-EMG, (ID = 802406) Equipment Power Supply Unit EDS-4971; EMG, Orion-EMG, (ID = 802407) Equipment
Use red slider bar for more.

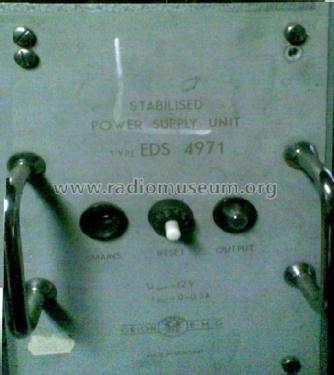

Power Supply Unit EDS-4971; EMG, Orion-EMG, (ID = 802406) Equipment
EMG, Orion-EMG,: Power Supply Unit EDS-4971 [Equipment] ID = 802406 700x784
Select picture or schematic to display from thumbnails on the right and click for download.
For model Power Supply Unit EDS-4971, EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest:
STS Archív.

Country:  Hungary
Manufacturer / Brand:  EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
Year: 1967 ? Category: Service- or Lab Equipment
Semiconductors (the count is only for transistors) 8:
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Power Supply Unit EDS-4971 - EMG, Orion-EMG, Elektronikus M
Material Metal case
Shape Rack
Dimensions (WHD) 160 x 240 x 225 mm / 6.3 x 9.4 x 8.9 inch
Notes Stabilised Power Supply Unit, 12 V; 0- 0,5 A +/- 1%
Net weight (2.2 lb = 1 kg) 8.5 kg / 18 lb 11.6 oz (18.722 lb)
Source of data -- Original-techn. papers.

Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
