Pulse Generator 1158/TR-0361
Use red slider bar for more.
EMG, Orion-EMG,: Pulse Generator 1158/TR-0361 [Equipment] ID = 413092 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1975–1979 | Category: Service- or Lab Equipment | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Wave bands | - without |
|---|---|
| Details | |

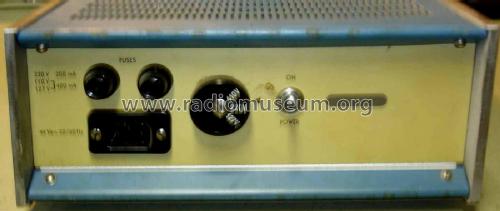

| Power type and voltage | Alternating Current supply (AC) / 110; 127; 220 Volt |
| Loudspeaker | - For headphones or amp. |
| Power out | |
| from Radiomuseum.org | Model: Pulse Generator 1158/TR-0361 - EMG, Orion-EMG, Elektronikus M |
| Material | Metal case |
| Shape | Tablemodel, with any shape - general. |
| Dimensions (WHD) | 265 x 110 x 305 mm / 10.4 x 4.3 x 12 inch |
| Notes | Orion developed TR-0361, sold by EMG as 1158. 10 Hz - 10 MHz, Uout: 10 V/50 Ω. |
| Source of data | -- Original prospect or advert |
Model page created by Helmut Matysik. See "Data change" for further contributors.
