Sampling Amplifier Unit 1589-U-56 / TR-4726
Use red slider bar for more.

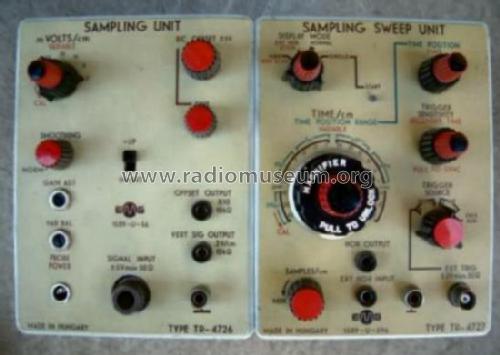

EMG, Orion-EMG,: Sampling Amplifier Unit 1589-U-56 / TR-4726 [Equipment] ID = 795987 550x391
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1976–1981 | Category: Service- or Lab Equipment | ||||
| Semiconductors (the count is only for transistors) | Semiconductors present. |
|---|
| Wave bands | - without |
|---|---|
| Details | |
| Power type and voltage | Powered by external power supply or a main unit. |
| Loudspeaker | - - No sound reproduction output. |
| Power out | |
| from Radiomuseum.org | Model: Sampling Amplifier Unit 1589-U-56 / TR-4726 - EMG, Orion-EMG, Elektronikus M |
| Material | Metal case |
| Shape | Chassis only or for «building in» |
| Dimensions (WHD) | 120 x 160 x 320 mm / 4.7 x 6.3 x 12.6 inch |
| Net weight (2.2 lb = 1 kg) | 2.5 kg / 5 lb 8.1 oz (5.507 lb) |
| Source of data | -- Original prospect or advert |
Model page created by Sandor Selyem-Tóth. See "Data change" for further contributors.
