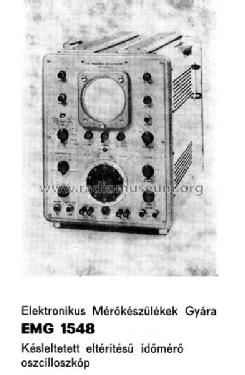

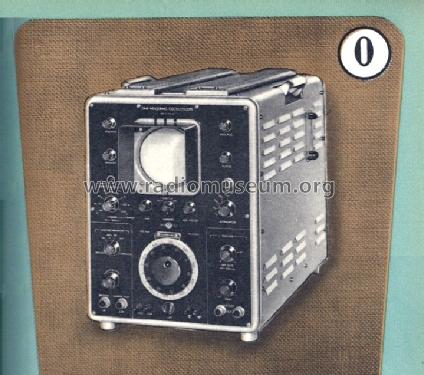

Time Meter Oszcilloszkop 1548/Tr-4501-B
EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
- Country
- Hungary
- Manufacturer / Brand
- EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
- Year
- 1959–1965
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 162855
Original manual.
- Number of Tubes
- 34
- Valves / Tubes
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110; 127; 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Time Meter Oszcilloszkop 1548/Tr-4501-B - EMG, Orion-EMG, Elektronikus M
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 400 x 500 x 650 mm / 15.7 x 19.7 x 25.6 inch
- Notes
-
- Screen 5".
- Vertical amplifier: 5 Hz- 8 MHz,
- Időeltérítő generátor - Time difference generator: 20 Hz-200 kHz.
- Indítójel-generátor - Start signal generator: 80 Hz-2 kHz.
- Net weight (2.2 lb = 1 kg)
- 60 kg / 132 lb 2.5 oz (132.159 lb)
- Price in first year of sale
- 47,000.00 HUF
- Literature/Schematics (1)
- EMG Katalog 1967.
- Literature/Schematics (2)
- Magyar Műszerek Katalógusa, MIGÉRT, 1961.
- Literature/Schematics (4)
- EMG katalog 1959.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
