UHF Signalgenerator 1173/TR-0601

UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 516392) Equipment
UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 516798) Equipment UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 1254706) Equipment
UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 1254707) Equipment UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 2004800) Equipment
UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 2004801) Equipment UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 2004802) Equipment
UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 2004803) Equipment UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 2004805) Equipment
UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 2004806) Equipment UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 2004807) Equipment
Use red slider bar for more.
UHF Signalgenerator 1173/TR-0601; EMG, Orion-EMG, (ID = 516798) Equipment

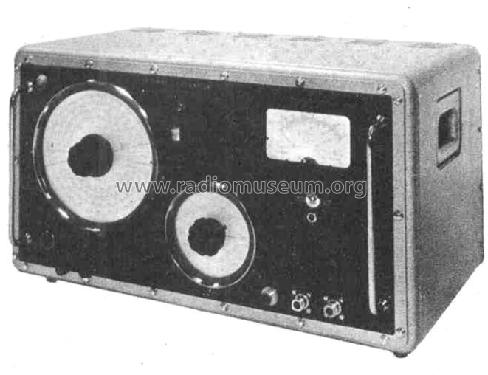

EMG, Orion-EMG,: UHF Signalgenerator 1173/TR-0601 [Equipment] ID = 516798 662x508
Select picture or schematic to display from thumbnails on the right and click for download.
For model UHF Signalgenerator 1173/TR-0601, EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest:
aus Radioschau 3 / 1963

Country:  Hungary
Manufacturer / Brand:  EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
Year: 1959–1961 Category: Service- or Lab Equipment
Valves / Tubes 16:
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 110; 127; 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: UHF Signalgenerator 1173/TR-0601 - EMG, Orion-EMG, Elektronikus M
Material Metal case
Shape Tablemodel, with any shape - general.
Notes

UHF-Signalgenerator 1173/TR-0601
Modulation: Extern AM 30 Hz bis 100 kHz, Interne AM 400 Hz und 50 Hz, 0-70 %;
Video: positiv und negativ Gleichstrom, Interne FM 400 Hz und 50 Hz;
Ausgang: 0,5 µV bis 450 mV (CW und FM), 0,5 µV bis 100 mV (CW, AM, Video und FM).
Orion developed TR-0601, sold by EMG as 1173. In Österreich durch Firma Metrimpex/Norma (Import-Exportfirma) vertrieben.

Frekvencia határok FM: 4-250 MHz.

Price in first year of sale 65'500.00 Forint
Mentioned in - - Manufacturers Literature (Radioschau 3. 1963)
Literature/Schematics (1) Magyar Műszerek Katalógusa, MIGÉRT, 1961.
Literature/Schematics (4) EMG katalog 1959.

Model page created by Karlheinz Fischer. See "Data change" for further contributors.
