• Country
• Yugoslavia

• Manufacturer / Brand
• Ei, Elektronska Industrija; Niš - see also RR

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 209769

• • Brand: Ei

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 7

• Semiconductors
• SFT317 or. AF272 AF260 AF260 AC542 AC542 AC553 AC553 AA120 AA110

• Main principle
• Superheterodyne (common); ZF/IF 461 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 2 x 4.5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

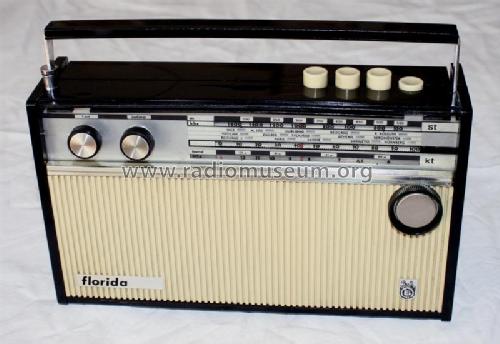

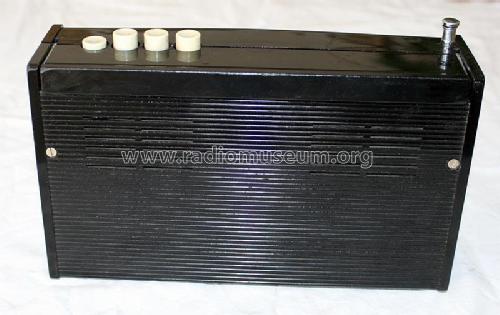

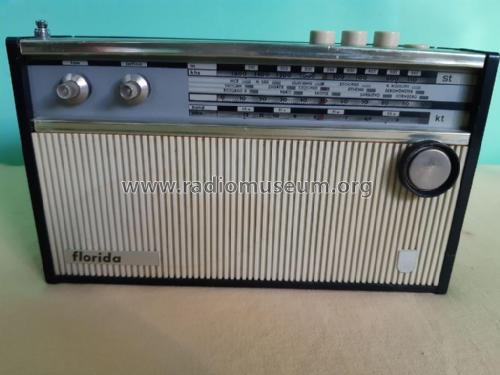

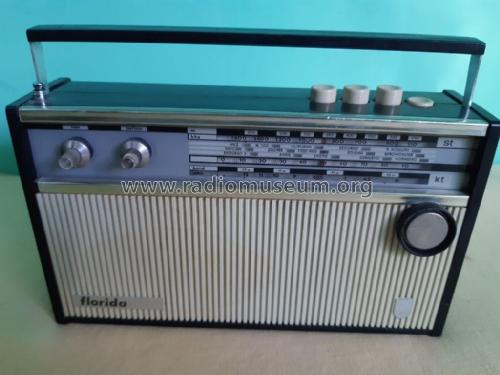

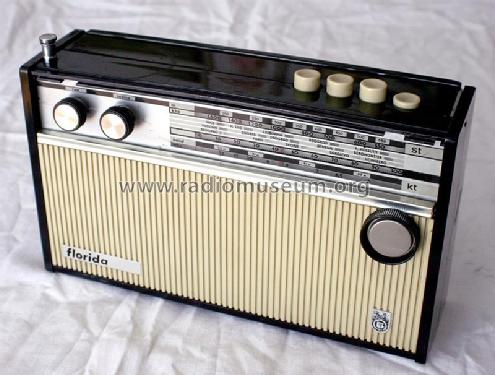

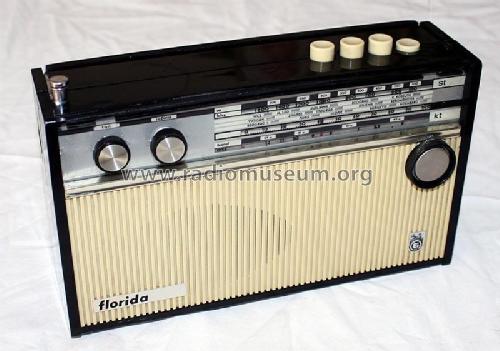

• Model: Florida - Ei, Elektronska Industrija; Ni

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 245 x 145 x 75 mm / 9.6 x 5.7 x 3 inch

• Notes

• Elliptical speaker 120 x 70 mm.

• Mentioned in
• -- Schematic

• Author
• Model page created by Danko Tkalec. See "Data change" for further contributors.
