Orfej ; Elektronska (ID = 576108) Radio
Elektronska: Orfej [Radio] ID = 576108 827x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Orfej, Elektronska Industrija (Ei); Niš

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1961 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF115 SFT306 SFT306 AC542 AC542 AC550 AC550
Main principle Super-Heterodyne (Super in general); ZF/IF 459 kHz
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage Dry Batteries / 2 x 4,5 Volt

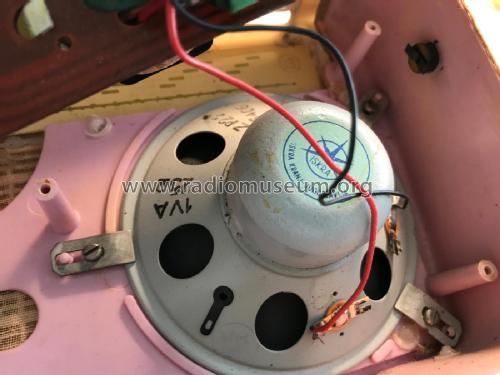

Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
Power out 0.5 W (unknown quality)
from Radiomuseum.org Model: Orfej - Elektronska Industrija Ei; Niš
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 230 x 150 x 80 mm / 9.1 x 5.9 x 3.1 inch
Notes

Das Gerät wurde nach einer Lizenz von HEA Österreich gefertigt.

Am Rande der Printplatte steht der Text: "NIKOLA TESLA  JUGOSLAVIJA".

Net weight (2.2 lb = 1 kg) 1.5 kg / 3 lb 4.9 oz (3.304 lb)
Mentioned in RADIOBOTE, Österreich (Gerätevorstellung in Heft 47, S16ff, September-Oktober 2013)

Model page created by Danko Tkalec. See "Data change" for further contributors.
