Rio 3V

Rio 3V; Elektronska (ID = 1942656) Radio

Rio 3V; Elektronska (ID = 2289003) Radio

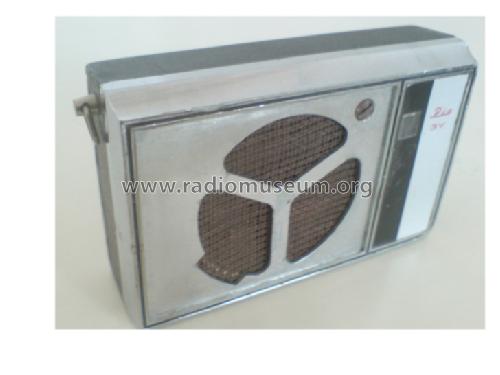

Rio 3V; Elektronska (ID = 2269948) Radio Rio 3V; Elektronska (ID = 1201223) Radio
Rio 3V; Elektronska (ID = 1201224) Radio Rio 3V; Elektronska (ID = 1201225) Radio
Rio 3V; Elektronska (ID = 2269947) Radio Rio 3V; Elektronska (ID = 2269949) Radio
Use red slider bar for more.
Rio 3V; Elektronska (ID = 2269948) Radio
Elektronska: Rio 3V [Radio] ID = 2269948 1200x789
Select picture or schematic to display from thumbnails on the right and click for download.
For model Rio 3V, Elektronska Industrija (Ei); Niš

Country:  Yugoslavia
Manufacturer / Brand:  Elektronska Industrija (Ei); Niš
Brand

Ei
Year: 1972 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 7: AF271 AF260 AF260 AC542 AC542 AC550 AC550
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 2 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 cm = 2.6 inch
Power out
from Radiomuseum.org Model: Rio 3V - Elektronska Industrija Ei; Niš
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 100 x 65 x 28 mm / 3.9 x 2.6 x 1.1 inch
Net weight (2.2 lb = 1 kg) 0.3 kg / 0 lb 10.6 oz (0.661 lb)
Source of data -- Original-techn. papers.

Model page created by Wolfgang Lill. See "Data change" for further contributors.



All listed radios etc. from Elektronska Industrija (Ei); Niš
Here you find 103 models, 95 with images and 51 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
