• Country
• Czechoslovakia

• Manufacturer / Brand
• Elektronika Praha; Lhotka nad Modřany

• Year
• 1988 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 335889

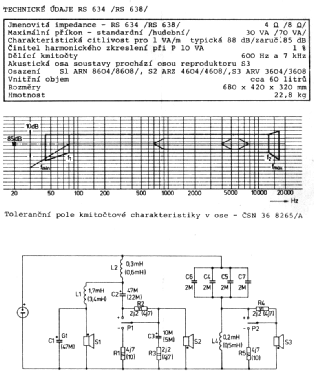

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• 3 Loudspeakers

• Power out
• 70 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: RS638 - Elektronika Praha; Lhotka nad

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 420 x 680 x 300 mm / 16.5 x 26.8 x 11.8 inch

• Mentioned in
• -- Collector info (Sammler)

• Author
• Model page created by Gabriel Toth. See "Data change" for further contributors.

• Other Models

• Here you find 13 models, 10 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Elektronika Praha; Lhotka nad Modřany
